ESP/ESC Warning Light On in Your VW? Causes, Driving Safety, and Repair Costs

When you are turning a curve or if you are just running normally and the
ESP (or ESC) warning light suddenly comes on, you may be wondering,
“I’m not skidding?”
or “…… the safety equipment is malfunctioning?”
You will be anxious.

ESP/ESC is an important mechanism to stabilize the car on slippery surfaces, but
it can also turn on due to electrical abnormalities or faulty sensors.

In this article, we summarize the meaning, causes, drivability, and estimated repair costs of common ESP/ESC warning lights in VW in an easy-to-understand manner.

If your warning light comes on, read this article first
👉 If your VW warning light comes on | Urgency levels, main causes, and repair costs based on color and lighting pattern

Meaning of ESP/ESC warning light (color, on/flashing, what it indicates)

VW’s ESP/ESC lamps indicate the operation of the electronic stability program / control.

The meaning changes in the state of the lamp

• Flashing: The system is working
  (tires are idling and compensating on slippery surfaces)
• Stays on (does not go out): Abnormal
  Sensor, ABS, electrical system, etc. Fault is suspected

If it is constantly on during normal driving,
it is a sign that something is wrong.

3 points to check first (color/lighting pattern/situation)

(1) Flashing or lit

• Flashing: The function is only working → not a malfunction
• Lighting: Abnormal → Inspection Required

(2) When did it turn on?

• The moment you pass through a step or rut
• At launch
• During the curve
• Rainy day and snowy road
• Temporarily lit and disappeared

Once you know the situation, it will be easier to isolate the cause.

(3) Simultaneous with other warning lights

In particular, it is easy to light the following at the same time

• ABS Warning Light
• Tire pressure warning light
• EPC Lamp
• Check engine light

Multiple lights are a sign that there is a problem in a wide range of the control system.

Common causes of ESP/ESC warning lights (in order of most in VW)

(1) Defective ABS wheel speed sensor

It is the most common cause.
If the sensors on each tire cannot detect the speed correctly,
ESP/ESC will not work properly.

(2) Faulty magnetic encoder inside the hub bearing

In VW, there are cases where the encoder side deteriorates and malfunctions when set with the sensor.

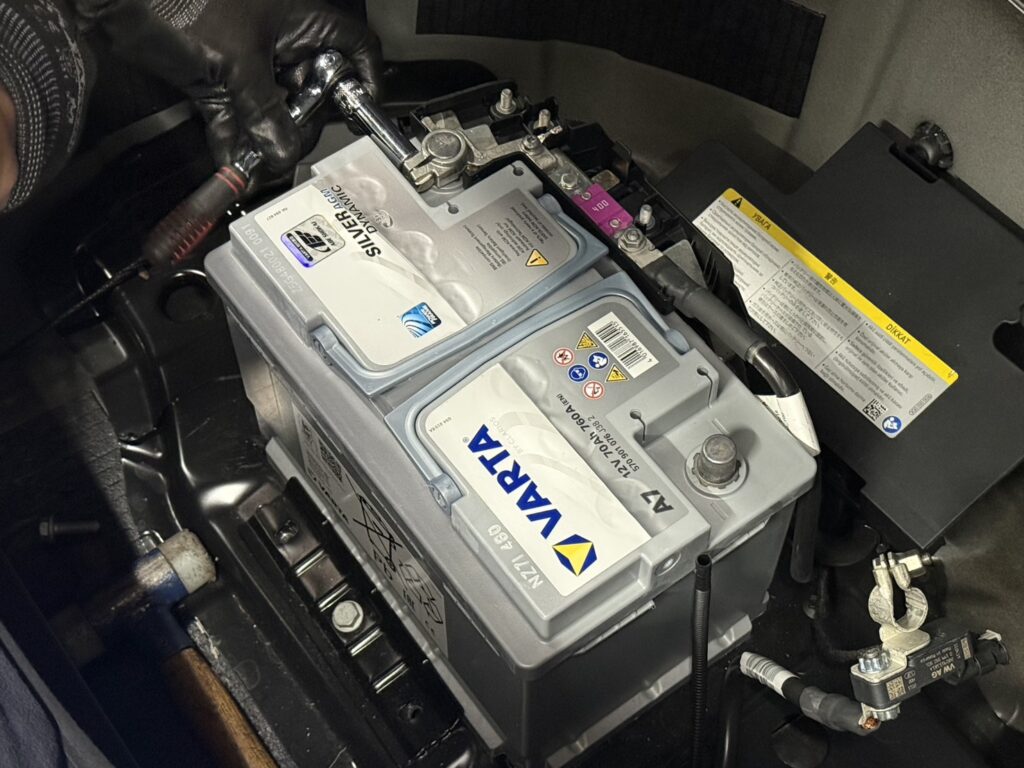

(3) Low battery voltage

The control system may become unstable due to voltage drops.
This pattern is especially common in seasons with low temperatures and old batteries.

(4) Abnormality of the steering angle sensor (G85)

If the steering wheel cutting angle information is off,
a warning will appear because it cannot correctly determine which way the car is facing.

(5) Insufficient tire pressure and size discrepancy

If the rotation difference between the four wheels is large, the system may misidentify and light up.

(6) Brake-related abnormalities (brake switches, etc.)

Brake switch failure is a common case in VW.
ESP/ESC is also linked to ABS, which can cause the light to turn on.

Driving when ESP/ESC lamp is on

Cases where you can drive

• Flashing only (correcting on slippery surfaces)
• It lights up temporarily and then goes out immediately

This is normal operation, not a malfunction.

Cases where you can drive but need to be careful

• Stay on
• There are no abnormalities such as speedometers
• There is no particular noise or vibration

The ESP/ESC function will be “unusable”, so
be careful on slippery roads.

Cases when not to drive

• ABS warning light and brake warning light turn on at the same time
• The speedometer does not work
• There is abnormal noise or strong vibration

Early inspection is necessary because it is related to the safety of the brake system.

Diagnosis and repair flow (general procedure)

• Read error codes with OBD diagnostic machine
• Inspect the target wheel and angle sensors
• Voltage check (battery and alternator)
• Replacement of sensors, hub bearings, etc.
• Steering angle sensor calibration
• Checking Operation After Error Reset

ESP/ESC is also linked to ABS, EPC, and engine control, so
multiple systems are checked in diagnostics.

Approximate repair cost (common example at VW)

You can scroll

👉Summary of maintenance and custom costs & working days of VW specialty store Nile Plus

What happens if left unattended?

Driving with ESP/ESC not working carries
the following risks:

• The car is not stable on rain, snow, and icy roads
• Behavior is easily disturbed when steering suddenly.
• Braking performance is also affected because it works with ABS
• Deterioration of sensors → Increase in repair costs

Since it is a safety device, it is safe to respond as soon as possible.

Information to note before consulting with a specialized factory

• Situation at the moment of lighting
• Did you pass through a step or rut just before?
• Have you recently changed tires or wheels?
• When to replace the battery
• Presence or absence of other warning lights

Having this information will make the diagnosis smoother.

FAQ

Q1. What is the difference between ESP and ESC?

Only the name is different, but the role is almost the same.

Q2. Is it okay if it’s just flashing?

It is normal because it is a correction action on slippery roads.

Q3. What happens if it is always on?

Safety devices will not be available, so you need to be especially careful on rainy or snowy days.

Q4. What is the most common cause?

In VW, ABS wheel sensors tend to malfunction.

Q5. Why did it light up after changing tires?

It may light up temporarily due to differences in air pressure or size, or sensor reading errors.

Defect details by vehicle type

Although the “way of getting out” the defect is similar, “which model has many problems” is slightly different for each car model.
Trends by vehicle model and common breakdown cases among other owners are summarized on the following page.
